Detailed Description

A node in a property tree.

Definition at line 753 of file props.hxx.

#include <props.hxx>

Inheritance diagram for SGPropertyNode:

Collaboration diagram for SGPropertyNode:

Public Types
enum	{ MAX_STRING_LEN = 1024 }
	Public constants. More...

enum	Attribute { NO_ATTR = 0 , READ = 1 , WRITE = 2 , ARCHIVE = 4 , REMOVED = 8 , TRACE_READ = 16 , TRACE_WRITE = 32 , USERARCHIVE = 64 , PRESERVE = 128 }
	Access mode attributes. More...

Public Member Functions
	SGPropertyNode ()
	Default constructor.

	SGPropertyNode (const SGPropertyNode &node)
	Copy constructor.

virtual	~SGPropertyNode ()
	Destructor.

void	addChangeListener (SGPropertyChangeListener *listener, bool initial=false)
	Add a change listener to the property.

SGPropertyNode *	addChild (const char *name, int min_index=0, bool append=true)
	Create a new child node with the given name and an unused index.

SGPropertyNode *	addChild (const std::string &name, int min_index=0, bool append=true)

simgear::PropertyList	addChildren (const std::string &name, size_t count, int min_index=0, bool append=true)
	Create multiple child nodes with the given name an unused indices.

bool	alias (const char *path)
	Alias this node's leaf value to another's by relative path.

bool	alias (const std::string &path)
	Alias this node's leaf value to another's by relative path.

bool	alias (SGPropertyNode *target)
	Alias this node's leaf value to another's.

void	clearValue ()
	Clear any existing value and set the type to NONE.

void	fireChildAdded (SGPropertyNode *child)
	Fire a child-added event to all listeners.

void	fireChildRemoved (SGPropertyNode *child)
	Fire a child-removed event to all listeners.

void	fireChildrenRemovedRecursive ()
	Fire a child-removed event for every child of this node (Unlimited depth)

void	fireCreatedRecursive (bool fire_self=false)
	Trigger a child-added and value-changed event for every child (Unlimited depth).

void	fireValueChanged ()
	Fire a value change event to all listeners.

SGPropertyNode *	getAliasTarget ()
	Get a non-const pointer to the current alias target, if any.

const SGPropertyNode *	getAliasTarget () const
	Get a const pointer to the current alias target, if any.

bool	getAttribute (Attribute attr) const
	Check a single mode attribute for the property node.

int	getAttributes () const
	Get all of the mode attributes for the property node.

bool	getBoolValue () const
	Get a bool value for this node.

bool	getBoolValue (const char *relative_path, bool defaultValue=false) const
	Get another node's value as a bool.

bool	getBoolValue (const std::string &relative_path, bool defaultValue=false) const
	Get another node's value as a bool.

const SGPropertyNode *	getChild (const char *name, int index=0) const
	Get a const child node by name and index.

SGPropertyNode *	getChild (const char *name, int index=0, bool create=false)
	Get a child node by name and index.

const SGPropertyNode *	getChild (const std::string &name, int index=0) const
	Get a const child node by name and index.

SGPropertyNode *	getChild (const std::string &name, int index=0, bool create=false)

SGPropertyNode *	getChild (int position)
	Get a child node by position (NOT index).

const SGPropertyNode *	getChild (int position) const
	Get a const child node by position (NOT index).

simgear::PropertyList	getChildren (const char *name) const
	Get a vector of all children with the specified name.

simgear::PropertyList	getChildren (const std::string &name) const
	Get a vector of all children with the specified name.

template<typename T , typename T_get >
std::vector< T >	getChildValues (const std::string &name) const
	Get a list of values from all children with the given name.

template<typename T >
std::vector< T >	getChildValues (const std::string &name) const
	Get a list of values from all children with the given name.

std::string	getDisplayName (bool simplify=false) const
	Get the node's pretty display name, with subscript when needed.

double	getDoubleValue () const
	Get a double value for this node.

double	getDoubleValue (const char *relative_path, double defaultValue=0.0) const
	Get another node's value as a double.

double	getDoubleValue (const std::string &relative_path, double defaultValue=0.0) const
	Get another node's value as a double.

float	getFloatValue () const
	Get a float value for this node.

float	getFloatValue (const char *relative_path, float defaultValue=0.0f) const
	Get another node's value as a float.

float	getFloatValue (const std::string &relative_path, float defaultValue=0.0f) const
	Get another node's value as a float.

int	getIndex () const
	Get the node's integer index.

int	getIntValue () const
	Get an int value for this node.

int	getIntValue (const char *relative_path, int defaultValue=0) const
	Get another node's value as an int.

int	getIntValue (const std::string &relative_path, int defaultValue=0) const
	Get another node's value as an int.

long	getLongValue () const
	Get a long int value for this node.

long	getLongValue (const char *relative_path, long defaultValue=0L) const
	Get another node's value as a long int.

long	getLongValue (const std::string &relative_path, long defaultValue=0L) const
	Get another node's value as a long int.

const std::string &	getNameString () const
	Get the node's simple name as a string.

const SGPropertyNode *	getNode (const char *relative_path) const
	Get a const pointer to another node by relative path.

SGPropertyNode *	getNode (const char *relative_path, bool create=false)
	Get a pointer to another node by relative path.

const SGPropertyNode *	getNode (const char *relative_path, int index) const
	Get a const pointer to another node by relative path.

SGPropertyNode *	getNode (const char *relative_path, int index, bool create=false)
	Get a pointer to another node by relative path.

const SGPropertyNode *	getNode (const std::string &relative_path) const
	Get a const pointer to another node by relative path.

SGPropertyNode *	getNode (const std::string &relative_path, bool create=false)
	Get a pointer to another node by relative path.

const SGPropertyNode *	getNode (const std::string &relative_path, int index) const
	Get a const pointer to another node by relative path.

SGPropertyNode *	getNode (const std::string &relative_path, int index, bool create=false)
	Get a pointer to another node by relative path.

SGPropertyNode *	getParent ()
	Get a non-const pointer to the node's parent.

const SGPropertyNode *	getParent () const
	Get a const pointer to the node's parent.

std::string	getPath (bool simplify=false) const
	Get the path to this node from the root.

SGPropertyNode *	getRootNode ()
	Get a pointer to the root node.

const SGPropertyNode *	getRootNode () const
	Get a const pointer to the root node.

const char *	getStringValue () const
	Get a string value for this node.

const char *	getStringValue (const char relative_path, const char defaultValue="") const
	Get another node's value as a string.

const char *	getStringValue (const std::string &relative_path, const char *defaultValue="") const
	Get another node's value as a string.

simgear::props::Type	getType () const
	Get the type of leaf value, if any, for this node.

simgear::props::Type	getType (const char *relative_path) const
	Get another node's type.

simgear::props::Type	getType (const std::string &relative_path) const
	Get another node's type.

template<typename T >
T	getValue (typename boost::disable_if_c< simgear::props ::PropertyTraits< T >::Internal >::type *dummy) const

template<typename T >
T	getValue (typename boost::disable_if_c< simgear::props::PropertyTraits< T >::Internal > ::type *dummy=0) const

template<typename T >
T	getValue (typename boost::enable_if_c< simgear::props ::PropertyTraits< T >::Internal >::type *dummy) const

template<typename T >
T	getValue (typename boost::enable_if_c< simgear::props::PropertyTraits< T >::Internal > ::type *dummy=0) const
	Get a value from a node.

bool	hasChild (const char *name, int index=0) const
	Test whether a named child exists.

bool	hasChild (const std::string &name, int index=0) const
	Test whether a named child exists.

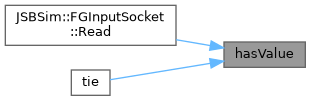

bool	hasValue () const
	Test whether this node contains a primitive leaf value.

bool	hasValue (const char *relative_path) const
	Test whether another node has a leaf value.

bool	hasValue (const std::string &relative_path) const
	Test whether another node has a leaf value.

bool	isAlias () const
	Test whether the node's leaf value is aliased to another's.

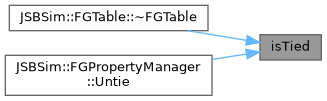

bool	isTied () const
	Test whether this node is bound to an external data source.

bool	isTied (const char *relative_path) const
	Test whether another node is bound to an external data source.

bool	isTied (const std::string &relative_path) const
	Test whether another node is bound to an external data source.

int	nChildren () const
	Get the number of child nodes.

int	nListeners () const
	Get the number of listeners.

std::ostream &	printOn (std::ostream &stream) const
	Print the value of the property to a stream.

void	removeAllChildren ()
	Remove all children (does not change the value of the node)

void	removeChangeListener (SGPropertyChangeListener *listener)
	Remove a change listener from the property.

SGPropertyNode_ptr	removeChild (const char *name, int index=0)
	Remove a child node.

SGPropertyNode_ptr	removeChild (const std::string &name, int index=0)
	Remove a child node.

SGPropertyNode_ptr	removeChild (int pos)
	Remove child by position.

bool	removeChild (SGPropertyNode *node)
	Remove child by pointer (if it is a child of this node).

simgear::PropertyList	removeChildren (const char *name)
	Remove all children with the specified name.

simgear::PropertyList	removeChildren (const std::string &name)
	Remove all children with the specified name.

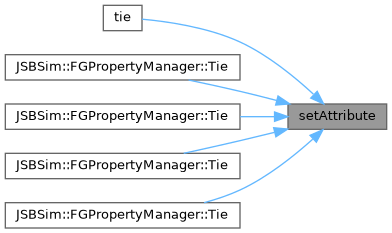

void	setAttribute (Attribute attr, bool state)
	Set a single mode attribute for the property node.

void	setAttributes (int attr)
	Set all of the mode attributes for the property node.

bool	setBoolValue (bool value)
	Set a bool value for this node.

bool	setBoolValue (const char *relative_path, bool value)
	Set another node's value as a bool.

bool	setBoolValue (const std::string &relative_path, bool value)
	Set another node's value as a bool.

bool	setDoubleValue (const char *relative_path, double value)
	Set another node's value as a double.

bool	setDoubleValue (const std::string &relative_path, double value)
	Set another node's value as a double.

bool	setDoubleValue (double value)
	Set a double value for this node.

bool	setFloatValue (const char *relative_path, float value)
	Set another node's value as a float.

bool	setFloatValue (const std::string &relative_path, float value)
	Set another node's value as a float.

bool	setFloatValue (float value)
	Set a float value for this node.

bool	setIntValue (const char *relative_path, int value)
	Set another node's value as an int.

bool	setIntValue (const std::string &relative_path, int value)
	Set another node's value as an int.

bool	setIntValue (int value)
	Set an int value for this node.

bool	setLongValue (const char *relative_path, long value)
	Set another node's value as a long int.

bool	setLongValue (const std::string &relative_path, long value)
	Set another node's value as a long int.

bool	setLongValue (long value)
	Set a long int value for this node.

bool	setStringValue (const char relative_path, const char value)
	Set another node's value as a string.

bool	setStringValue (const char *relative_path, const std::string &value)

bool	setStringValue (const char *value)
	Set a string value for this node.

bool	setStringValue (const std::string &relative_path, const char *value)
	Set another node's value as a string.

bool	setStringValue (const std::string &relative_path, const std::string &value)

bool	setStringValue (const std::string &value)
	Set a string value for this node.

bool	setUnspecifiedValue (const char relative_path, const char value)
	Set another node's value with no specified type.

bool	setUnspecifiedValue (const char *value)
	Set a value of unspecified type for this node.

template<int N>
bool	setValue (const char(&val)[N])

template<typename T >
bool	setValue (const T &val, typename boost::disable_if_c< simgear::props ::PropertyTraits< T >::Internal >::type *dummy)

template<typename T >
bool	setValue (const T &val, typename boost::disable_if_c< simgear::props::PropertyTraits< T >::Internal > ::type *dummy=0)

template<typename T >
bool	setValue (const T &val, typename boost::enable_if_c< simgear::props ::PropertyTraits< T >::Internal >::type *dummy)

template<typename T >
bool	setValue (const T &val, typename boost::enable_if_c< simgear::props::PropertyTraits< T >::Internal > ::type *dummy=0)

template<typename T >
bool	setValueReadOnly (const std::string &relative_path, const T &value)
	Set relative node to given value and afterwards make read only.

bool	tie (const char *relative_path, const SGRawValue< bool > &rawValue, bool useDefault=true)
	Bind another node to an external bool source.

bool	tie (const char relative_path, const SGRawValue< const char > &rawValue, bool useDefault=true)
	Bind another node to an external string source.

bool	tie (const char *relative_path, const SGRawValue< double > &rawValue, bool useDefault=true)
	Bind another node to an external double source.

bool	tie (const char *relative_path, const SGRawValue< float > &rawValue, bool useDefault=true)
	Bind another node to an external float source.

bool	tie (const char *relative_path, const SGRawValue< int > &rawValue, bool useDefault=true)
	Bind another node to an external int source.

bool	tie (const char *relative_path, const SGRawValue< long > &rawValue, bool useDefault=true)
	Bind another node to an external long int source.

template<>
bool	tie (const SGRawValue< const char * > &rawValue, bool useDefault)

template<typename T >
bool	tie (const SGRawValue< T > &rawValue, bool useDefault=true)
	Bind this node to an external source.

bool	tie (const std::string &relative_path, const SGRawValue< bool > &rawValue, bool useDefault=true)
	Bind another node to an external bool source.

bool	tie (const std::string &relative_path, const SGRawValue< const char * > &rawValue, bool useDefault=true)
	Bind another node to an external string source.

bool	tie (const std::string &relative_path, const SGRawValue< double > &rawValue, bool useDefault=true)
	Bind another node to an external double source.

bool	tie (const std::string &relative_path, const SGRawValue< float > &rawValue, bool useDefault=true)
	Bind another node to an external float source.

bool	tie (const std::string &relative_path, const SGRawValue< int > &rawValue, bool useDefault=true)
	Bind another node to an external int source.

bool	tie (const std::string &relative_path, const SGRawValue< long > &rawValue, bool useDefault=true)
	Bind another node to an external long int source.

bool	unalias ()
	Remove any alias for this node.

bool	untie ()
	Unbind this node from any external data source.

bool	untie (const char *relative_path)
	Unbind another node from any external data source.

bool	untie (const std::string &relative_path)
	Unbind another node from any external data source.

Static Public Member Functions
static bool	compare (const SGPropertyNode &lhs, const SGPropertyNode &rhs)
	Compare two property trees.

Static Public Attributes
static const int	LAST_USED_ATTRIBUTE
	Last used attribute Update as needed when enum Attribute is changed.

Protected Member Functions
	SGPropertyNode (const std::string &name, int index, SGPropertyNode *parent)
	Protected constructor for making new nodes on demand.

template<typename Itr >
	SGPropertyNode (Itr begin, Itr end, int index, SGPropertyNode *parent)

SGPropertyNode_ptr	eraseChild (simgear::PropertyList::iterator child)

void	fireChildAdded (SGPropertyNode parent, SGPropertyNode child)

void	fireChildRemoved (SGPropertyNode parent, SGPropertyNode child)

void	fireValueChanged (SGPropertyNode *node)

Static Protected Attributes
static simgear::PropertyInterpolationMgr *	_interpolation_mgr

Friends
template<typename SplitItr >
SGPropertyNode *	find_node_aux (SGPropertyNode *current, SplitItr &itr, bool create, int last_index)

size_t	hash_value (const SGPropertyNode &node)

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Public constants.

Definition at line 760 of file props.hxx.

       {
    MAX_STRING_LEN = 1024
  };

◆ Attribute

enum Attribute

Access mode attributes.

The ARCHIVE attribute is strictly advisory, and controls whether the property should normally be saved and restored.

Definition at line 770 of file props.hxx.

                 {
    NO_ATTR = 0,
    READ = 1,
    WRITE = 2,
    ARCHIVE = 4,
    REMOVED = 8,
    TRACE_READ = 16,
    TRACE_WRITE = 32,
    USERARCHIVE = 64,
    PRESERVE = 128
    // beware: if you add another attribute here,
    // also update value of "LAST_USED_ATTRIBUTE".
  };

Member Function Documentation

◆ addChangeListener()

void addChangeListener	(	SGPropertyChangeListener *	listener,
		bool	initial = `false`
	)

Add a change listener to the property.

If "initial" is set call the listener initially.

◆ addChild() [1/2]

SGPropertyNode * addChild	(	const char *	name,
		int	min_index = `0`,
		bool	append = `true`
	)

Create a new child node with the given name and an unused index.

Parameters

min_index	Minimal index for new node (skips lower indices)
append	Whether to simply use the index after the last used index or use a lower, unused index if it exists

◆ addChild() [2/2]

SGPropertyNode * addChild	(	const std::string &	name,
		int	min_index = `0`,
		bool	append = `true`
	)

inline

Definition at line 897 of file props.hxx.

900 { return addChild(name.c_str(), min_index, append); }

SGPropertyNode::addChild

SGPropertyNode * addChild(const char *name, int min_index=0, bool append=true)

Create a new child node with the given name and an unused index.

◆ addChildren()

simgear::PropertyList addChildren	(	const std::string &	name,
		size_t	count,
		int	min_index = `0`,
		bool	append = `true`
	)

Create multiple child nodes with the given name an unused indices.

Parameters

count	The number of nodes create
min_index	Minimal index for new nodes (skips lower indices)
append	Whether to simply use the index after the last used index or use a lower, unused index if it exists

◆ alias()

bool alias ( const std::string & path )

inline

Alias this node's leaf value to another's by relative path.

Definition at line 1005 of file props.hxx.

1006 { return alias(path.c_str()); }

◆ compare()

static bool compare	(	const SGPropertyNode &	lhs,
		const SGPropertyNode &	rhs
	)

static

Compare two property trees.

The property trees are equal if: 1) They have no children, and have the same type and the values are equal, or 2) have the same number of children, and the corresponding children in each tree are equal. "corresponding" means have the same name and index.

Attributes, removed children, and aliases aren't considered.

◆ fireChildrenRemovedRecursive()

void fireChildrenRemovedRecursive ( )

Fire a child-removed event for every child of this node (Unlimited depth)

Upon removal of a child node only for this single node a child-removed event is triggered. If eg. resource cleanup relies on receiving a child-removed event for every child this method can be used.

◆ fireCreatedRecursive()

void fireCreatedRecursive ( bool fire_self = false )

Trigger a child-added and value-changed event for every child (Unlimited depth).

Parameters

fire_self Whether to trigger the events also for the node itself.

It can be used to simulating the creation of a property tree, eg. for (re)initializing a subsystem which is controlled through the property tree.

◆ getAttribute()

bool getAttribute ( Attribute attr ) const

inline

Check a single mode attribute for the property node.

Definition at line 1132 of file props.hxx.

1132{ return ((_attr & attr) != 0); }

◆ getAttributes()

int getAttributes ( ) const

inline

Get all of the mode attributes for the property node.

Definition at line 1146 of file props.hxx.

1146{ return _attr; }

Here is the caller graph for this function:

◆ getBoolValue()

bool getBoolValue	(	const std::string &	relative_path,
		bool	defaultValue = `false`
	)		const

inline

Get another node's value as a bool.

Definition at line 1407 of file props.hxx.

1409 { return getBoolValue(relative_path.c_str(), defaultValue); }

SGPropertyNode::getBoolValue

bool getBoolValue() const

Get a bool value for this node.

◆ getChild()

const SGPropertyNode * getChild	(	const std::string &	name,
		int	index = `0`
	)		const

inline

Get a const child node by name and index.

Definition at line 930 of file props.hxx.

931 { return getChild(name.c_str(), index); }

SGPropertyNode::getChild

SGPropertyNode * getChild(int position)

Get a child node by position (NOT index).

◆ getChildren()

simgear::PropertyList getChildren ( const std::string & name ) const

inline

Get a vector of all children with the specified name.

Definition at line 942 of file props.hxx.

943 { return getChildren(name.c_str()); }

SGPropertyNode::getChildren

simgear::PropertyList getChildren(const char *name) const

Get a vector of all children with the specified name.

◆ getChildValues() [1/2]

template<typename T , typename T_get >

std::vector< T > getChildValues ( const std::string & name ) const

Get a list of values from all children with the given name.

Definition at line 1981 of file props.hxx.

{
  const simgear::PropertyList& props = getChildren(name);
  std::vector<T> values( props.size() );

  for( size_t i = 0; i < props.size(); ++i )
    values[i] = props[i]->getValue<T_get>();

  return values;
}

Here is the call graph for this function:

◆ getChildValues() [2/2]

template<typename T >

std::vector< T > getChildValues ( const std::string & name ) const

inline

Get a list of values from all children with the given name.

Definition at line 1994 of file props.hxx.

{
  return getChildValues<T, T>(name);
}

◆ getDoubleValue()

double getDoubleValue	(	const std::string &	relative_path,
		double	defaultValue = `0.0`
	)		const

inline

Get another node's value as a double.

Definition at line 1461 of file props.hxx.

1463 { return getDoubleValue(relative_path.c_str(), defaultValue); }

SGPropertyNode::getDoubleValue

double getDoubleValue() const

Get a double value for this node.

◆ getFloatValue()

float getFloatValue	(	const std::string &	relative_path,
		float	defaultValue = `0.0f`
	)		const

inline

Get another node's value as a float.

Definition at line 1447 of file props.hxx.

1449 { return getFloatValue(relative_path.c_str(), defaultValue); }

SGPropertyNode::getFloatValue

float getFloatValue() const

Get a float value for this node.

◆ getIndex()

int getIndex ( ) const

inline

Get the node's integer index.

Definition at line 833 of file props.hxx.

833{ return _index; }

◆ getIntValue()

int getIntValue	(	const std::string &	relative_path,
		int	defaultValue = `0`
	)		const

inline

Get another node's value as an int.

Definition at line 1420 of file props.hxx.

1422 { return getIntValue(relative_path.c_str(), defaultValue); }

SGPropertyNode::getIntValue

int getIntValue() const

Get an int value for this node.

◆ getLongValue()

long getLongValue	(	const std::string &	relative_path,
		long	defaultValue = `0L`
	)		const

inline

Get another node's value as a long int.

Definition at line 1434 of file props.hxx.

1436 { return getLongValue(relative_path.c_str(), defaultValue); }

SGPropertyNode::getLongValue

long getLongValue() const

Get a long int value for this node.

◆ getNameString()

const std::string & getNameString ( ) const

inline

Get the node's simple name as a string.

Definition at line 822 of file props.hxx.

822{ return _name; }

◆ getNode() [1/6]

const SGPropertyNode * getNode	(	const char *	relative_path,
		int	index
	)		const

Get a const pointer to another node by relative path.

This method leaves the index off the last member of the path, so that the user can specify it separate.

◆ getNode() [2/6]

SGPropertyNode * getNode	(	const char *	relative_path,
		int	index,
		bool	create = `false`
	)

Get a pointer to another node by relative path.

This method leaves the index off the last member of the path, so that the user can specify it separately (and save some string building). For example, getNode("/bar[1]/foo", 3) is exactly equivalent to getNode("bar[1]/foo[3]"). The index provided overrides any given in the path itself for the last component.

◆ getNode() [3/6]

const SGPropertyNode * getNode ( const std::string & relative_path ) const

inline

Get a const pointer to another node by relative path.

Definition at line 1102 of file props.hxx.

1103 { return getNode(relative_path.c_str()); }

SGPropertyNode::getNode

SGPropertyNode * getNode(const char *relative_path, bool create=false)

Get a pointer to another node by relative path.

◆ getNode() [4/6]

SGPropertyNode * getNode	(	const std::string &	relative_path,
		bool	create = `false`
	)

inline

Get a pointer to another node by relative path.

Definition at line 1064 of file props.hxx.

1065 { return getNode(relative_path.c_str(), create); }

◆ getNode() [5/6]

const SGPropertyNode * getNode	(	const std::string &	relative_path,
		int	index
	)		const

inline

Get a const pointer to another node by relative path.

This method leaves the index off the last member of the path, so that the user can specify it separate.

Definition at line 1121 of file props.hxx.

1123 { return getNode(relative_path.c_str(), index); }

◆ getNode() [6/6]

SGPropertyNode * getNode	(	const std::string &	relative_path,
		int	index,
		bool	create = `false`
	)

inline

Get a pointer to another node by relative path.

This method leaves the index off the last member of the path, so that the user can specify it separately (and save some string building). For example, getNode("/bar[1]/foo", 3) is exactly equivalent to getNode("bar[1]/foo[3]"). The index provided overrides any given in the path itself for the last component.

Definition at line 1090 of file props.hxx.

1092 { return getNode(relative_path.c_str(), index, create); }

◆ getParent() [1/2]

SGPropertyNode * getParent ( )

inline

Get a non-const pointer to the node's parent.

Definition at line 839 of file props.hxx.

839{ return _parent; }

◆ getParent() [2/2]

const SGPropertyNode * getParent ( ) const

inline

Get a const pointer to the node's parent.

Definition at line 845 of file props.hxx.

845{ return _parent; }

◆ getStringValue()

const char * getStringValue	(	const std::string &	relative_path,
		const char *	defaultValue = `""`
	)		const

inline

Get another node's value as a string.

Definition at line 1475 of file props.hxx.

1477 { return getStringValue(relative_path.c_str(), defaultValue); }

SGPropertyNode::getStringValue

const char * getStringValue() const

Get a string value for this node.

◆ getType()

simgear::props::Type getType ( const std::string & relative_path ) const

inline

Get another node's type.

Definition at line 1384 of file props.hxx.

1385 { return getType(relative_path.c_str()); }

SGPropertyNode::getType

simgear::props::Type getType() const

Get the type of leaf value, if any, for this node.

◆ getValue() [1/3]

template<typename T >

T getValue ( typename boost::disable_if_c< simgear::props ::PropertyTraits< T >::Internal >::type * dummy ) const

Definition at line 1946 of file props.hxx.

{
    using namespace simgear::props;
    if (_attr == (READ|WRITE) && _type == EXTENDED
        && _value.val->getType() == PropertyTraits<T>::type_tag) {
        return static_cast<SGRawValue<T>*>(_value.val)->getValue();
    }
    if (getAttribute(TRACE_READ))
        trace_read();
    if (!getAttribute(READ))
      return SGRawValue<T>::DefaultValue();
    switch (_type) {
    case EXTENDED:
        if (_value.val->getType() == PropertyTraits<T>::type_tag)
            return static_cast<SGRawValue<T>*>(_value.val)->getValue();
        break;
    case STRING:
    case UNSPECIFIED:
        return simgear::parseString<T>(make_string());
        break;
    default: // avoid compiler warning
        break;
    }
    return SGRawValue<T>::DefaultValue();
}

◆ getValue() [2/3]

template<typename T >

T getValue ( typename boost::enable_if_c< simgear::props ::PropertyTraits< T >::Internal >::type * dummy ) const

inline

Definition at line 1974 of file props.hxx.

{
  return ::getValue<T>(this);
}

◆ getValue() [3/3]

template<typename T >

T getValue ( typename boost::enable_if_c< simgear::props::PropertyTraits< T >::Internal > ::type * dummy = 0 ) const

Get a value from a node.

If the actual type of the node doesn't match the desired type, a conversion isn't guaranteed.

◆ hasChild() [1/2]

bool hasChild	(	const char *	name,
		int	index = `0`
	)		const

inline

Test whether a named child exists.

Definition at line 874 of file props.hxx.

  {
    return (getChild(name, index) != 0);
  }

◆ hasChild() [2/2]

bool hasChild	(	const std::string &	name,
		int	index = `0`
	)		const

inline

Test whether a named child exists.

Definition at line 882 of file props.hxx.

  {
    return (getChild(name, index) != 0);
  }

◆ hasValue() [1/2]

bool hasValue ( ) const

inline

Test whether this node contains a primitive leaf value.

Definition at line 817 of file props.hxx.

817{ return (_type != simgear::props::NONE); }

simgear::props::NONE

@ NONE

The node hasn't been assigned a value yet.

Definition props.hxx:161

Here is the caller graph for this function:

◆ hasValue() [2/2]

bool hasValue ( const std::string & relative_path ) const

inline

Test whether another node has a leaf value.

Definition at line 1395 of file props.hxx.

1396 { return hasValue(relative_path.c_str()); }

SGPropertyNode::hasValue

bool hasValue() const

Test whether this node contains a primitive leaf value.

Definition props.hxx:817

◆ isAlias()

bool isAlias ( ) const

inline

Test whether the node's leaf value is aliased to another's.

Definition at line 1018 of file props.hxx.

1018{ return (_type == simgear::props::ALIAS); }

simgear::props::ALIAS

@ ALIAS

The node "points" to another node.

Definition props.hxx:162

◆ isTied() [1/2]

bool isTied ( ) const

inline

Test whether this node is bound to an external data source.

Definition at line 1356 of file props.hxx.

1356{ return _tied; }

Here is the caller graph for this function:

◆ isTied() [2/2]

bool isTied ( const std::string & relative_path ) const

inline

Test whether another node is bound to an external data source.

Definition at line 1571 of file props.hxx.

1572 { return isTied(relative_path.c_str()); }

SGPropertyNode::isTied

bool isTied() const

Test whether this node is bound to an external data source.

Definition props.hxx:1356

◆ nChildren()

int nChildren ( ) const

inline

Get the number of child nodes.

Definition at line 856 of file props.hxx.

856{ return (int)_children.size(); }

◆ nListeners()

int nListeners ( ) const

inline

Get the number of listeners.

Definition at line 1687 of file props.hxx.

1687{ return _listeners ? (int)_listeners->size() : 0; }

◆ removeChild() [1/2]

SGPropertyNode_ptr removeChild	(	const std::string &	name,
		int	index = `0`
	)

inline

Remove a child node.

Definition at line 967 of file props.hxx.

968 { return removeChild(name.c_str(), index); }

SGPropertyNode::removeChild

bool removeChild(SGPropertyNode *node)

Remove child by pointer (if it is a child of this node).

◆ removeChild() [2/2]

bool removeChild ( SGPropertyNode * node )

Remove child by pointer (if it is a child of this node).

Returns: true, if the node was deleted.

◆ removeChildren()

simgear::PropertyList removeChildren ( const std::string & name )

inline

Remove all children with the specified name.

Definition at line 978 of file props.hxx.

979 { return removeChildren(name.c_str()); }

SGPropertyNode::removeChildren

simgear::PropertyList removeChildren(const char *name)

Remove all children with the specified name.

◆ setAttribute()

void setAttribute	(	Attribute	attr,
		bool	state
	)

inline

Set a single mode attribute for the property node.

Definition at line 1138 of file props.hxx.

                                                 {
    (state ? _attr |= attr : _attr &= ~attr);
  }

Here is the caller graph for this function:

◆ setAttributes()

void setAttributes ( int attr )

inline

Set all of the mode attributes for the property node.

Definition at line 1152 of file props.hxx.

1152{ _attr = attr; }

Here is the caller graph for this function:

◆ setBoolValue()

bool setBoolValue	(	const std::string &	relative_path,
		bool	value
	)

inline

Set another node's value as a bool.

Definition at line 1488 of file props.hxx.

1489 { return setBoolValue(relative_path.c_str(), value); }

SGPropertyNode::setBoolValue

bool setBoolValue(bool value)

Set a bool value for this node.

◆ setDoubleValue()

bool setDoubleValue	(	const std::string &	relative_path,
		double	value
	)

inline

Set another node's value as a double.

Definition at line 1536 of file props.hxx.

1537 { return setDoubleValue(relative_path.c_str(), value); }

SGPropertyNode::setDoubleValue

bool setDoubleValue(double value)

Set a double value for this node.

◆ setFloatValue()

bool setFloatValue	(	const std::string &	relative_path,
		float	value
	)

inline

Set another node's value as a float.

Definition at line 1524 of file props.hxx.

1525 { return setFloatValue(relative_path.c_str(), value); }

SGPropertyNode::setFloatValue

bool setFloatValue(float value)

Set a float value for this node.

◆ setIntValue()

bool setIntValue	(	const std::string &	relative_path,
		int	value
	)

inline

Set another node's value as an int.

Definition at line 1500 of file props.hxx.

1501 { return setIntValue(relative_path.c_str(), value); }

SGPropertyNode::setIntValue

bool setIntValue(int value)

Set an int value for this node.

◆ setLongValue()

bool setLongValue	(	const std::string &	relative_path,
		long	value
	)

inline

Set another node's value as a long int.

Definition at line 1512 of file props.hxx.

1513 { return setLongValue(relative_path.c_str(), value); }

SGPropertyNode::setLongValue

bool setLongValue(long value)

Set a long int value for this node.

◆ setStringValue() [1/4]

bool setStringValue	(	const char *	relative_path,
		const std::string &	value
	)

inline

Definition at line 1545 of file props.hxx.

1546 { return setStringValue(relative_path, value.c_str()); }

SGPropertyNode::setStringValue

bool setStringValue(const char *value)

Set a string value for this node.

◆ setStringValue() [2/4]

bool setStringValue	(	const std::string &	relative_path,
		const char *	value
	)

inline

Set another node's value as a string.

Definition at line 1550 of file props.hxx.

1551 { return setStringValue(relative_path.c_str(), value); }

◆ setStringValue() [3/4]

bool setStringValue	(	const std::string &	relative_path,
		const std::string &	value
	)

inline

Definition at line 1553 of file props.hxx.

1555 { return setStringValue(relative_path.c_str(), value.c_str()); }

◆ setStringValue() [4/4]

bool setStringValue ( const std::string & value )

inline

Set a string value for this node.

Definition at line 1263 of file props.hxx.

1264 { return setStringValue(value.c_str()); }

◆ setValue() [1/3]

template<int N>

bool setValue ( const char(&) val[N] )

inline

Definition at line 1283 of file props.hxx.

  {
    return setValue(&val[0]);
  }

◆ setValue() [2/3]

template<typename T >

bool setValue	(	const T &	val,
		typename boost::disable_if_c< simgear::props ::PropertyTraits< T >::Internal >::type *	dummy
	)

Definition at line 2000 of file props.hxx.

{
    using namespace simgear::props;
    if (_attr == (READ|WRITE) && _type == EXTENDED
        && _value.val->getType() == PropertyTraits<T>::type_tag) {
        static_cast<SGRawValue<T>*>(_value.val)->setValue(val);
        return true;
    }
    if (getAttribute(WRITE)
        && ((_type == EXTENDED
            && _value.val->getType() == PropertyTraits<T>::type_tag)
            || _type == NONE || _type == UNSPECIFIED)) {
        if (_type == NONE || _type == UNSPECIFIED) {
            clearValue();
            _type = EXTENDED;
            _value.val = new SGRawValueContainer<T>(val);
        } else {
            static_cast<SGRawValue<T>*>(_value.val)->setValue(val);
        }
        if (getAttribute(TRACE_WRITE))
            trace_write();
        return true;
    }
    return false;
}

◆ setValue() [3/3]

template<typename T >

bool setValue	(	const T &	val,
		typename boost::enable_if_c< simgear::props ::PropertyTraits< T >::Internal >::type *	dummy
	)

inline

Definition at line 2029 of file props.hxx.

{
  return ::setValue(this, val);
}

◆ setValueReadOnly()

template<typename T >

bool setValueReadOnly	(	const std::string &	relative_path,
		const T &	value
	)

inline

Set relative node to given value and afterwards make read only.

Parameters

relative_path	Path to node
value	Value to set

Returns: whether value could be set

Definition at line 1297 of file props.hxx.

  {
    SGPropertyNode* node = getNode(relative_path, true);
    bool ret = node->setValue(value);
    node->setAttributes(READ);
    return ret;
  }

Here is the call graph for this function:

◆ tie() [1/7]

template<typename T >

bool tie	(	const SGRawValue< T > &	rawValue,
		bool	useDefault = `true`
	)

Bind this node to an external source.

Definition at line 1915 of file props.hxx.

{
    using namespace simgear::props;
    if (_type == ALIAS || _tied)
        return false;

    useDefault = useDefault && hasValue();
    T old_val = SGRawValue<T>::DefaultValue();
    if (useDefault)
        old_val = getValue<T>(this);
    clearValue();
    if (PropertyTraits<T>::Internal)
        _type = PropertyTraits<T>::type_tag;
    else
        _type = EXTENDED;
    _tied = true;
    _value.val = rawValue.clone();
    if (useDefault) {
        int save_attributes = getAttributes();
        setAttribute( WRITE, true );
        setValue(old_val);
        setAttributes( save_attributes );
    }
    return true;
}

Here is the call graph for this function:

◆ tie() [2/7]

bool tie	(	const std::string &	relative_path,
		const SGRawValue< bool > &	rawValue,
		bool	useDefault = `true`
	)

inline

Bind another node to an external bool source.

Definition at line 1583 of file props.hxx.

1585 { return tie(relative_path.c_str(), rawValue, useDefault); }

SGPropertyNode::tie

bool tie(const SGRawValue< T > &rawValue, bool useDefault=true)

Bind this node to an external source.

Definition props.hxx:1915

◆ tie() [3/7]

bool tie	(	const std::string &	relative_path,
		const SGRawValue< const char * > &	rawValue,
		bool	useDefault = `true`
	)

inline

Bind another node to an external string source.

Definition at line 1653 of file props.hxx.

1655 { return tie(relative_path.c_str(), rawValue, useDefault); }

◆ tie() [4/7]

bool tie	(	const std::string &	relative_path,
		const SGRawValue< double > &	rawValue,
		bool	useDefault = `true`
	)

inline

Bind another node to an external double source.

Definition at line 1639 of file props.hxx.

1641 { return tie(relative_path.c_str(), rawValue, useDefault); }

◆ tie() [5/7]

bool tie	(	const std::string &	relative_path,
		const SGRawValue< float > &	rawValue,
		bool	useDefault = `true`
	)

inline

Bind another node to an external float source.

Definition at line 1625 of file props.hxx.

1627 { return tie(relative_path.c_str(), rawValue, useDefault); }

◆ tie() [6/7]

bool tie	(	const std::string &	relative_path,
		const SGRawValue< int > &	rawValue,
		bool	useDefault = `true`
	)

inline

Bind another node to an external int source.

Definition at line 1597 of file props.hxx.

1599 { return tie(relative_path.c_str(), rawValue, useDefault); }

◆ tie() [7/7]

bool tie	(	const std::string &	relative_path,
		const SGRawValue< long > &	rawValue,
		bool	useDefault = `true`
	)

inline

Bind another node to an external long int source.

Definition at line 1611 of file props.hxx.

1613 { return tie(relative_path.c_str(), rawValue, useDefault); }

◆ untie()

bool untie ( const std::string & relative_path )

inline

Unbind another node from any external data source.

Definition at line 1666 of file props.hxx.

1667 { return untie(relative_path.c_str()); }

SGPropertyNode::untie

bool untie()

Unbind this node from any external data source.

Member Data Documentation

◆ _interpolation_mgr

simgear::PropertyInterpolationMgr* _interpolation_mgr

staticprotected

Definition at line 1758 of file props.hxx.

◆ alias

SGPropertyNode* alias

Definition at line 1808 of file props.hxx.

◆ bool_val

bool bool_val

Definition at line 1813 of file props.hxx.

◆ double_val

double double_val

Definition at line 1817 of file props.hxx.

◆ float_val

float float_val

Definition at line 1816 of file props.hxx.

◆ int_val

int int_val

Definition at line 1814 of file props.hxx.

◆ LAST_USED_ATTRIBUTE

const int LAST_USED_ATTRIBUTE

static

Last used attribute Update as needed when enum Attribute is changed.

Definition at line 789 of file props.hxx.

◆ long_val

long long_val

Definition at line 1815 of file props.hxx.

◆ string_val

char* string_val

Definition at line 1818 of file props.hxx.

◆ val

SGRaw* val

Definition at line 1809 of file props.hxx.

The documentation for this class was generated from the following file:

props.hxx

Detailed Description

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Static Protected Attributes

Friends

Member Enumeration Documentation

◆ anonymous enum

◆ Attribute

Member Function Documentation

◆ addChangeListener()

◆ addChild() [1/2]

◆ addChild() [2/2]

◆ addChildren()

◆ alias()

◆ compare()

◆ fireChildrenRemovedRecursive()

◆ fireCreatedRecursive()

◆ getAttribute()

◆ getAttributes()

◆ getBoolValue()

◆ getChild()

◆ getChildren()

◆ getChildValues() [1/2]

◆ getChildValues() [2/2]

◆ getDoubleValue()

◆ getFloatValue()

◆ getIndex()

◆ getIntValue()

◆ getLongValue()

◆ getNameString()

◆ getNode() [1/6]

◆ getNode() [2/6]

◆ getNode() [3/6]

◆ getNode() [4/6]

◆ getNode() [5/6]

◆ getNode() [6/6]

◆ getParent() [1/2]

◆ getParent() [2/2]

◆ getStringValue()

◆ getType()

◆ getValue() [1/3]

◆ getValue() [2/3]

◆ getValue() [3/3]

◆ hasChild() [1/2]

◆ hasChild() [2/2]

◆ hasValue() [1/2]

◆ hasValue() [2/2]

◆ isAlias()

◆ isTied() [1/2]

◆ isTied() [2/2]

◆ nChildren()

◆ nListeners()

◆ removeChild() [1/2]

◆ removeChild() [2/2]

◆ removeChildren()

◆ setAttribute()

◆ setAttributes()

◆ setBoolValue()

◆ setDoubleValue()

◆ setFloatValue()

◆ setIntValue()

◆ setLongValue()

◆ setStringValue() [1/4]

◆ setStringValue() [2/4]

◆ setStringValue() [3/4]

◆ setStringValue() [4/4]

◆ setValue() [1/3]

◆ setValue() [2/3]

◆ setValue() [3/3]

◆ setValueReadOnly()

◆ tie() [1/7]

◆ tie() [2/7]

◆ tie() [3/7]

◆ tie() [4/7]

◆ tie() [5/7]

◆ tie() [6/7]

◆ tie() [7/7]
